[Fixed] Volume Icon Missing on Windows 10 or 8.1, How to Get it Back?

It doesn’t matter what type of latest Operating System you have on your computer, sometimes something goes wrong always. If you encounter that the volume icon is missing from the taskbar of Windows 10 or 8.1 computer, this post going to be useful.

For some reasons, the sound icon on the notification area may not appear. This could be possibly by system registry/files corruption or sound driver issues by Windows updates or even it was accidentally disabled by someone.

There are several methods available to fix this issue, but we will start with the basic method and then move to the advanced steps. Recently I faced this same issue after upgrading my Windows 10 and one of the following methods helped to solve it.

Methods to Show Missing Volume Icon on Windows 10 or 8.1

Method 1:  Let’s try from the Settings up

Search for ‘Turn system icons on or off’ from Windows search and click on it. This will directly open the control box where we can enable and disable the icons in the notification bar.

Search For Volume Icon Settings

Make sure that the volume icon is set to show in the notification area.

Turn On Volume Icon On Windows 10

This is a straightforward method to bring back the missing volume icon from the taskbar if someone or system settings disabled the view. In most cases, this method should work on Windows 10 or earlier Operating Systems.

Windows 8.1 and Windows 7 users can try below method.

Right-click near the clock on the notification area and select Properties.

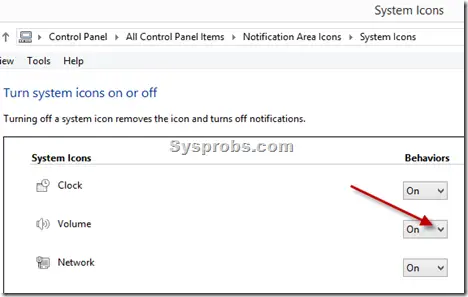

Task bar Properties Make sure Volume icon is set ‘On’ as shown below, if not, enable it.Enable System Icons

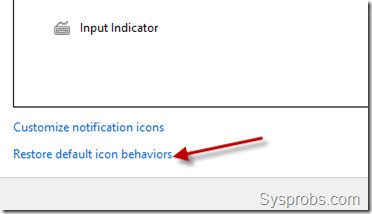

If this step doesn’t help, click on ‘Restore default icon behaviors’ which may bring back the missing icon.

restore volume icon

Read Also: How to get back missing language bar in Windows 8  or 8.1

Method 2: Restart the Windows Explorer

If still the volume icon is missing and you are not able to enable it from ‘Turn system icons on or off’  area as mentioned in the earlier step, then that could be an issue with the explorer process. The following two steps can solve the issue.

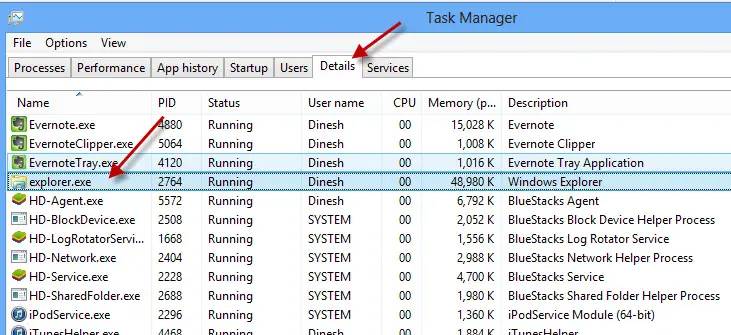

a) Kill the explorer.exe from Processes or Details tab under task manager.

Find out all explorer.exe and kill/terminate them, make sure no explorer.exe is running in the task manager. By this time, your desktop will go blank as the explorer service is not running at the moment.

Kill explorer

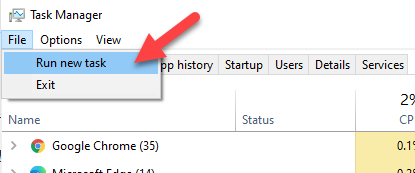

After that, on the File menu select the new process or Run (or new tasks).

Start A New Task

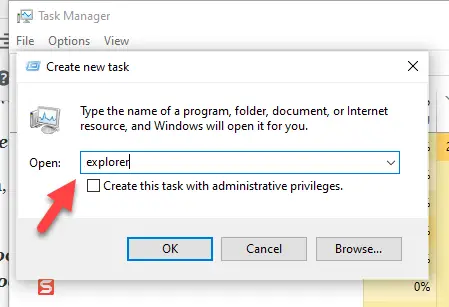

Type ‘explorer’ and press OK. It will start the new explorer process. That should bring back the volume icon.

Open Explorer


If none of the above methods helped for you, follow the below registry modification.

b) Registry modification- It’s recommended to take a backup before modifying the registry.

Open registry editor in Windows and find out;

HKEY_CURRENT_USER\Software\Classes\Local Settings\Software\Microsoft\Windows\CurrentVersion\TrayNotify

Once clicked the TrayNotify, look for IconStreams and PastIconStreams at the right pane.

Delete both keys. Right-click and select Delete.

Registry Modification For Missing Volume Icon

More information about modifying above registry value is available here at Microsoft site, please visit.

After modifying registry keys, you need to kill and restart the explorer.exe process to take effect.

Few Additional General Steps you Can Try

Here are some of the best practice and general steps you can try to fix this missing volume icon issue on a Windows computer.

  1. Restart the computer
  2. Log in with the different user profile and check. This can help in verifying whether the problem is for this particular user profile or all users on the computer.
  3. Recreate the user profile – if only one user is facing this issue on the computer.
  4. Do Windows update
  5. Uninstall and reinstall the sound driver. Better install the latest driver.

I hope one of the above methods would have helped you in getting back missing volume icon on Windows 10 or 8.1 desktop/laptop.

If any of the above solutions did not fix the Windows PC issues, we recommend downloading the below PC repair tool to identify and solve any PC Issues.

Dinesh is the founder of Sysprobs and written more than 400 articles. Enthusiast in Microsoft and cloud technologies with more than 15 years of IT experience.
